All-In-One VSS Conveter (RSX / S2K / Gen)

All-In-One VSS Conveter (RSX / S2K / Gen)

$244.79 CAD
$244.79 CAD $244.79 CAD
En vente Épuisé

KTD-SC-AIO
The K-Tuned All-In-One Adjustable VSS Converter was designed to merge all of our original VSS units into one simple and easy to use programmable speed correction unit. By connecting the unit via USB to any Windows based computer and using a simple downloaded computer application you can select from the following 3 settings to accurately adjust and calibrate your speed signal:

Note:
* This unit does not work with 05-06 Acura RSX
* For K-Swapped vehicles only

1) RSX Setting - Converts 05+ VSS signal to 02-04 specs. (High-Frequency transmission to low-frequency cluster)
2) S2K Setting - Corrects speed only for S2K cluster swaps. (Low-Frequency transmission to high-frequency cluster)
NOTE: The RSX and S2K settings are preset for swap cars with 23î tall tire (size 205/50R15) and are still adjustable a further 25% +/- for very accurate speedo calibration.
3) General Setting - No initial correction is made. You can enter any correction value desired up to 25% +/-

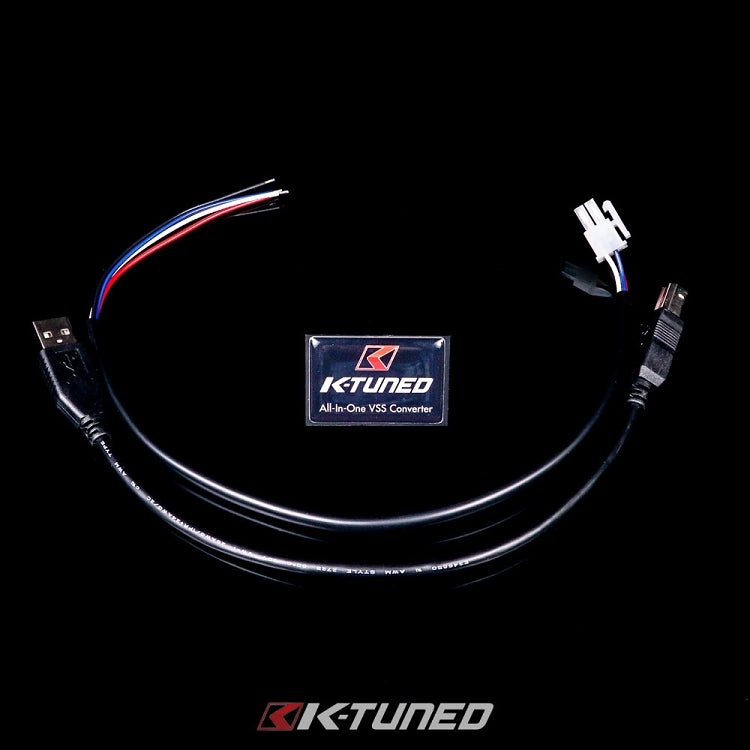

The K-Tuned AIO-VSS Converter is wired into the engine harness on the interior of the car near the ecu where it is safe from the outside elements. Wiring is also simple, with only 4 wires to connect: power, ground, speed signal input, and speed signal output. The converter comes complete with a detachable plug in harness and a separate USB harness which allows the unit to be easily removed from the car and connected to a computer for programming. We also include detailed installation and programming instructions.

Download the application HERE.
