K-Tuned TPS Adapter (Only fits billet K-Tuned TB) - B-Series TPS (SQUARE FLANGE)
K-Tuned TPS Adapter (Only fits billet K-Tuned TB) - B-Series TPS (SQUARE FLANGE)
Prix habituel
$54.39 CAD
Prix habituel
$54.39 CAD
Prix promotionnel
$54.39 CAD
Prix unitaire
/
par
SKU:KTD-TB9-BSA
Impossible de charger la disponibilité du service de retrait
Applications:
- Universal Bolt pattern matches all 86-93 Ford Mustang 5.0L specs.
Features:
* O-Rings Sealed
Notes:
- Our K-Tuned throttle cables should be used with K-Tuned TB's. In most cases the stock cables will NOT be the correct length
- No MAP Sensor or IACV Sensors ports, these are now deleted

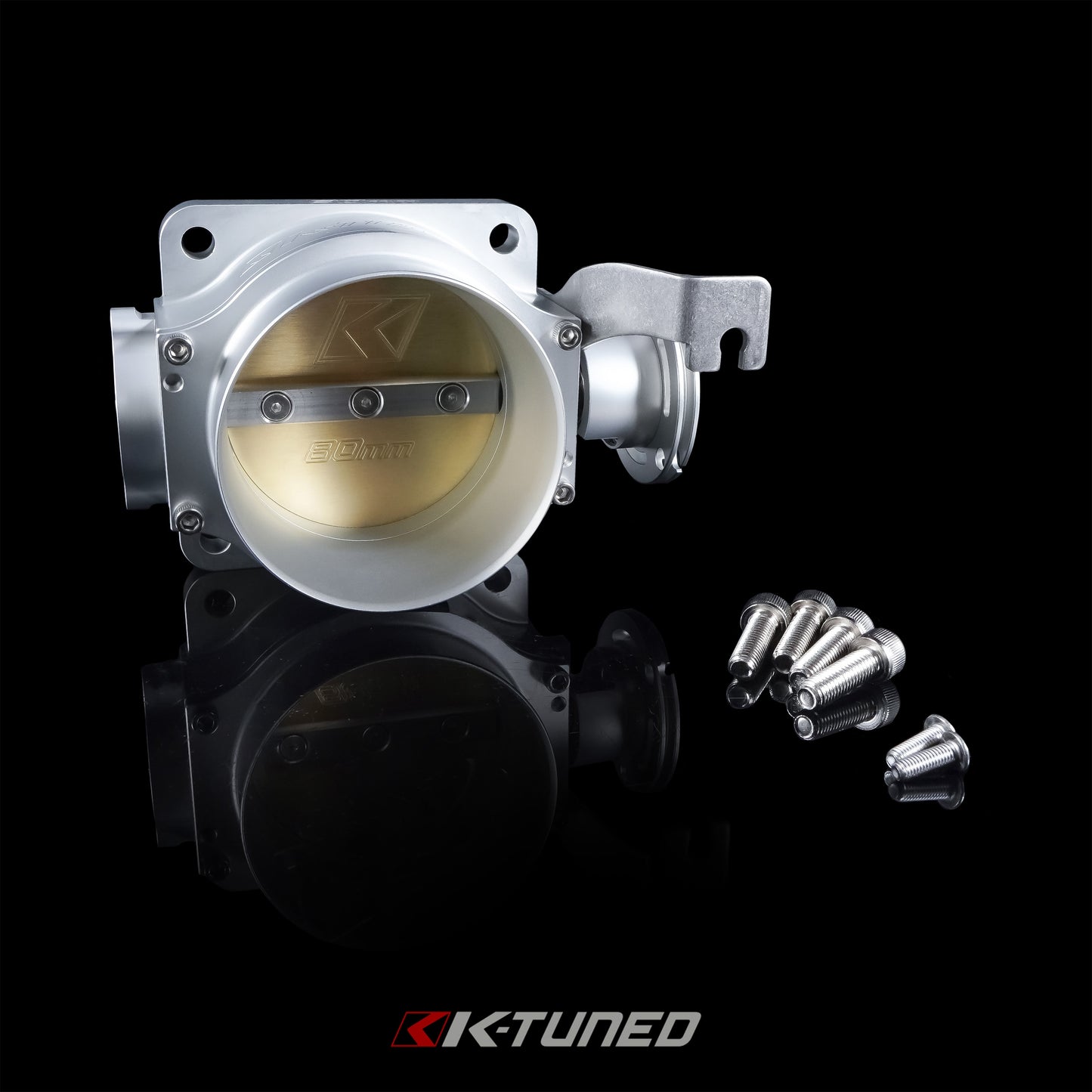

Our K-Tuned 80mm Throttle Body Uses that popular bolt pattern from the 86-93 Ford Mustang 5.0L. This allows our throttle body to bolt up perfectly to some of the bigger aftermarket race style intake manifold options. The 80mm K-Series TPS and comes standard with a 3.5" barb inlet. As with our previous designs, the throttle spring tension can be adjusted to suit the driver.
The base of the throttle body and the inlet are o-ring sealed so there is no need for additional gaskets. The throttle cable connection is easy, using the adjustable row rotor with a lower profile, stainless throttle cable bracket. All K-Tuned Throttle Bodies are constructed with 6061-T6 billet aluminum with a brass throttle blade and a stainless steel throttle shaft. Shaft seals are leak tested to 90psi.
